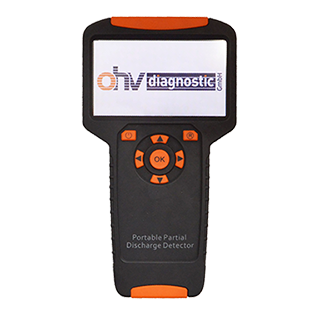

With HFCT, TEV, and other sensors, you can use our ohv ULTRADETECT -II probe for PD diagnosis of metal-clad switchgears. Regular testing of MV and HV equipment using the device allows for early and effective detection of electrical aging or other degradation within the insulation. Carrying out preventive maintenance assisted by PD testing ensures that the medium- and high voltage equipment continues to work properly.

Overview

• • With built-in tev and aa ultrasonic sensors, the pd detector can perform normal pd testing for switchgear with one single detector.
• • Equipped with standard bnc interface,external HFCT sensor could be connected to the detector, and perform pd testing for cables.
• • BNC interface is a multiplexing channel for high-speed signals. both hfct and tev test function can use the bnc interface, which is connected to corresponding sensor (external hfct or TEV sensors).

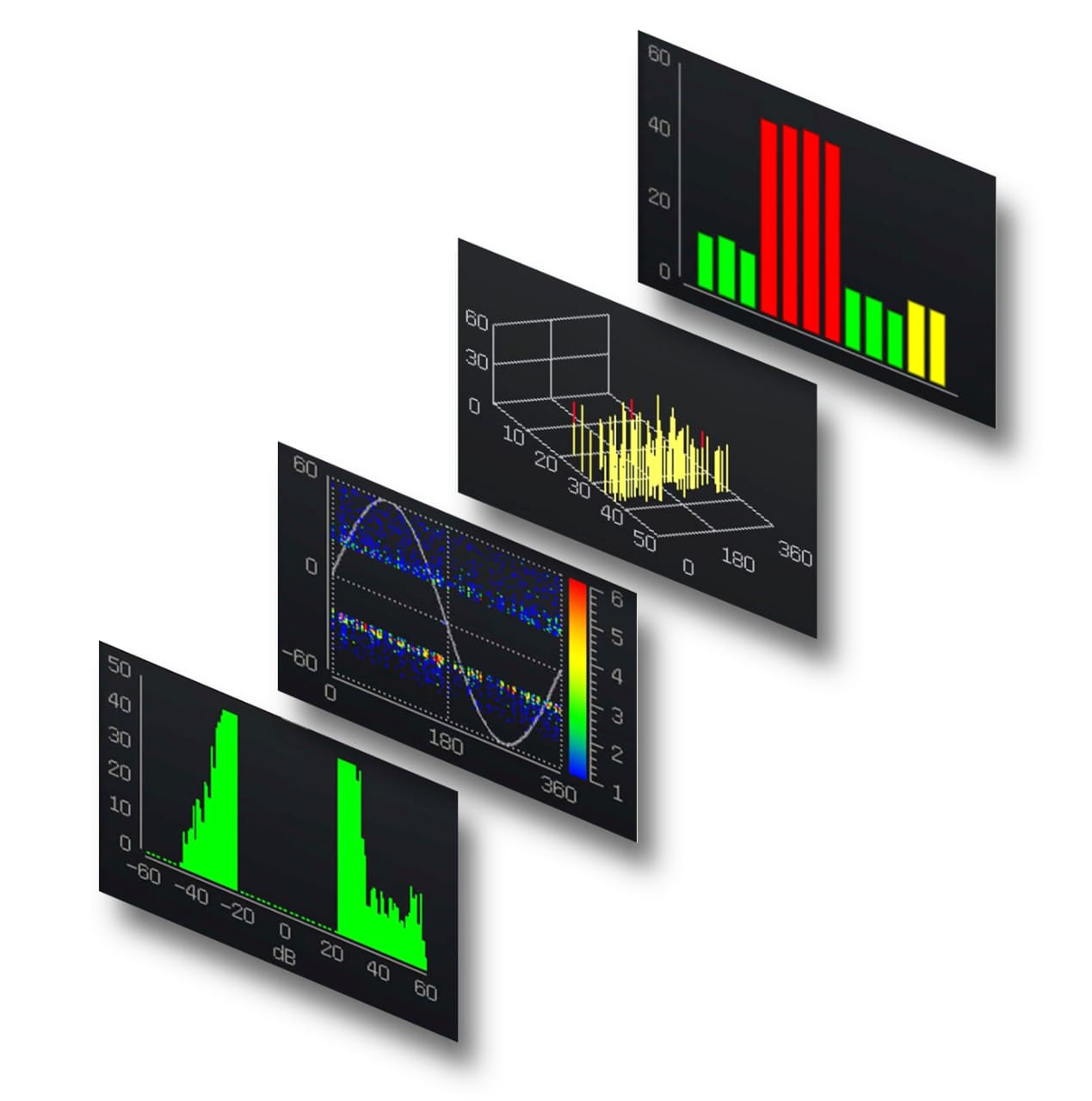

• • Providing a variety of measurement data and the corresponding graphic interface, including PRPD, PRPS, TF, FFT and others, meets the needs of users.
• • The operator can trigger waveform recording automatically or manually. the recorded waveform can be displayed on the screen and saved in flash at the same time.
• • Synchronized measurement and waveform recording for dual TEV channels (if dual TEV channels equipped).
• • Waveform and log files can be saved in built-in storage(4gb- 64gb flash). Recorded files can be exported to PC via USB or WIFI.
